Product Detail
Product name:

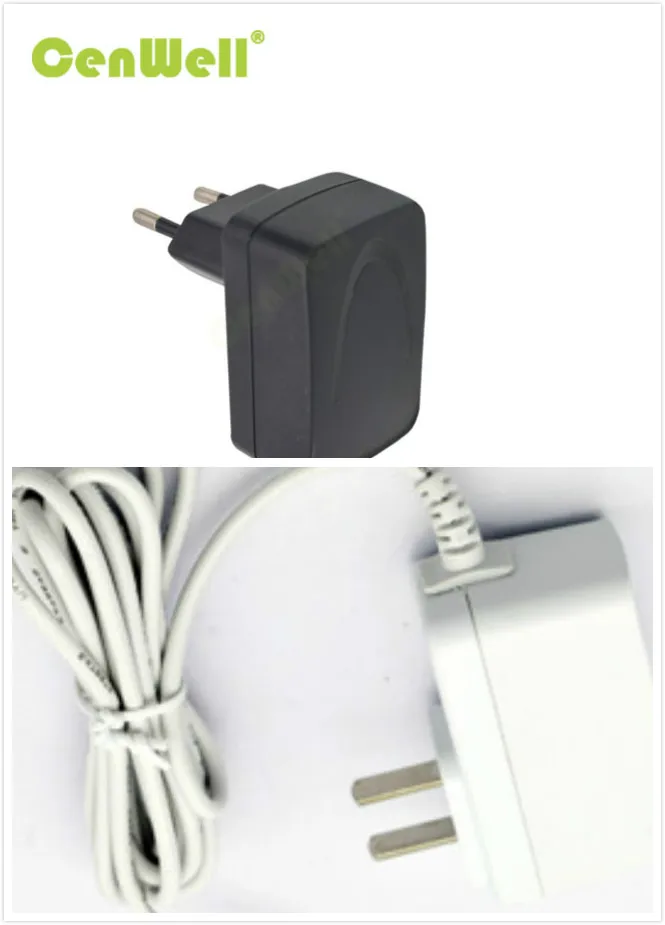

9.3V AC Power Adapter EU/CN Type Plug 15W Series
1, operation environment
* operation temperature: 0℃ - 40℃,full load, work properly
* storage temperature: -40℃ - 85℃(with case)
* Operation humidity: 5%(0℃) - 95%(40℃),72 hours,full load,work properly
2, details
* input voltage: 90 - 264V ac
* Rated input voltage: 100- 240V ac
* Input Frequency: 47Hz~63Hz
* Input current: 0.8 A(Max)at AC100V
* Output voltage range: ±5%
* efficiency: Level VI efficiency
* Ripple & Noise: ≤120mV
* Turn on delay time: ≤2S (test condition:115V)
|
Model
|
|
CW0931000
|
|
Output
|
|
9.3V 1000mA
|
|
Color
|
|
white, black, customizable etc.
|
|
Material
|
|
plastic
|
|
Cable type
|
|
DC cable
|
|
Cable length
|
|
1.2/1.5m
|
|
AC Plug
|
|
USA, UK, EU, AU, China etc.
|
|
Specifications
|
|
Input
|
|
100 to 240V AC, 50/60Hz
|
|
Output Power
|
|
6W 10W 12.5W 12W 15W 18W 30W 36W
|
|
Output voltage
|
|
3 to 24V DC
|
|
Output current
|
|
0.01 to 4A
|
|
Efficiency
|
|
Mini 80%
|
|
No Load Power Consumption
|
|
≤0.3W at Rated Voltage or ≤0.1W
|
|
Ripple and noise
|
|
≤120MV at full road with 20MHz bandwidth
|
|
High-Voltage test
|
|
Primary to secondary: 3 kV 5 mA 60S
|
|
Leakage Current
|
|
0.3mA(max) at input 240V AC
|
|
Operating Temperature Range
|
|
0--40°C
|
|
Storage Temperature Range
|
|
-20 --- 85°C
|
|
High Humidity Operation
|
|
+ 40 °C and 90 ~ 95% Humidity
|
|
MTBF
|
|
50,000 hours
|
|
Standard DC Connector(with pin inside)
|
|
Features:
|
|
* wall mounted type & desktop type
* universal input
* black/white available
* Over current, over voltage and short circuit protection
|
5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 /4.0*1.7/3.5*1.35/6.3*3.0/2.5*0.7
Package&Shipping
About Cenwell
Shenzhen Cenwell Technology Co., Ltd. is located in Shenzhen, China. We specialize in developing, producing and selling power adapter and charger. Our products has passed UL CUL ETL CE GS CB CCC PSE SAA FCC KC MEPS C-TICK etc.
CENWELL occupies an area of 6000 square meters and workers of 500. Our monthly outlets is 1,000,000 pieces. CENWELL always insists on Technology, Quality, Customers' satisifaction. We has passed ISO9001:2008 quality management system certification and follow the ISO9001:2008 quality control standards.
We sincerely hope to cooperate with customers all over the world. CENWELL will always provide high quality products and become a well-known enterprises in the power adapter industry.
Device

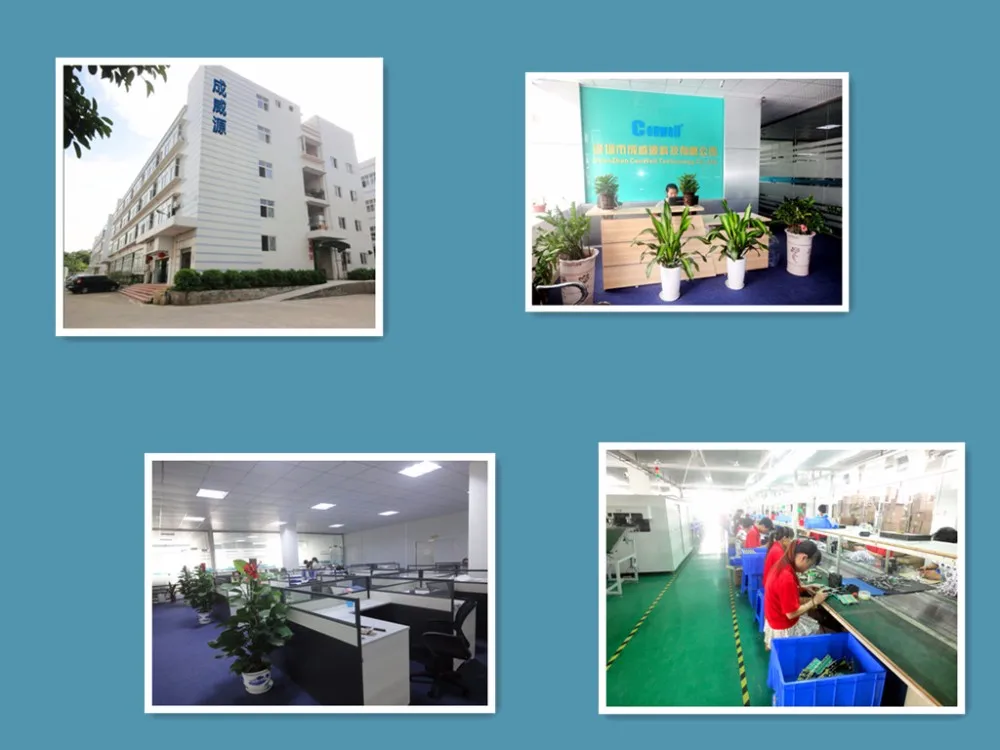

Workshop&Office
Certificate
Exhibition
Why Choose US
Advantages
* We are a factory, customizable order or OEM order is available.
* Several years' experience in the power adapter/ charger industry.
* Strict quality control system: Wave soldering machine, Burn-in proom, Salt Mist Test, EMI Test, Rohs Test etc. to ensure safety
*Products all passed certifications of CE,FCC,ROHS,UL,KC,PSE,C-Tick,SAA,GS,REACH,CEC,CCC etc.
* Low Ripple and noise to make you enjoy your time.
* Special design in the appearance and Many choose to satisfy you.
* Overload protection, output over voltage protection and short circuit protection to ensure safety while use our products.
